Airtac-Art Anschlag des Vertrags-Luft-Zylinder-SDA16X25 16mm der Bohrungs-25mm

Airtac-Art Anschlag des Vertrags-Luft-Zylinder-SDA16X25 16mm der Bohrungs-25mm

  • Airtac-Art Anschlag des Vertrags-Luft-Zylinder-SDA16X25 16mm der Bohrungs-25mm
Airtac-Art Anschlag des Vertrags-Luft-Zylinder-SDA16X25 16mm der Bohrungs-25mm
Produktdetails:
Herkunftsort: Ningbo, China
Markenname: BRANDO
Zertifizierung: CE, ISO
Modellnummer: SDA
Zahlung und Versand AGB:
Min Bestellmenge: 1 PC
Preis: Negotiation
Verpackung Informationen: Innerer Kasten, Karton, Palette
Lieferzeit: 4-7 Arbeitstage
Zahlungsbedingungen: L/C, T/T, Paypal, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 100000 PC pro Monat
Kontakt
Ausführliche Produkt-Beschreibung
Produkt-Reihe: SDA-Vertrags-Zylinder Bohrungs-Größe (Millimeter): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Standardanschlag (Millimeter): 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100, 110, 120, 130 Verantwortliche Art: Doppeltes Fungieren, einzelne Acting_-Stoß-Art, einzelne Acting_Pull-Art
Betriebsdruckstrecke: Doppeltes Fungieren: MPa 0,15 bis 1,0, einfachwirkend: MPa 0,2 bis 1,0 Prüfdruck: 1,5 Mpa
Markieren:

Airtac-Vertrags-Luft-Zylinder

,

Anschlag des Pneumatikzylinder-16mm der Bohrungs-25mm

,

Airtac SDA16X25

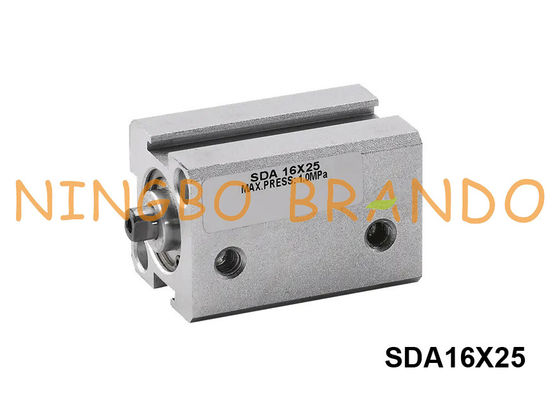

Airtac Type Compact Air Cylinder SDA16X25 16mm Bore 25mm Stroke



Air cylinders are either single-acting (spring return or spring extent) or double-acting. Single-acting cylinders require compressed to either extend or return the piston and the spring force is in the opposite direction. In a double-acting cylinder, compressed air is used for both the extension and retraction of the rod depending on where the high pressure is.Double acting cylinders are most commonly used. With multiple different configurations of rod diameter, stroke length, force in/out, and pressure ranges there is a pneumatic cylinder for almost any application requiring linear motion. We also have options with a magnetic piston for position feedback capabilities as well as adjustable damping for added control of cushioning.



BRANDO’s wide range of pneumatic cylinders allow you to find a product to meet almost any application requirements and we ensure they are made from high quality material, tested, calibrated, and come to you at a competitive price.



Specifications of SDA Series Pneumatic Cylinder:

Bore Size (mm) 12 16 20 25 32 40 50 63 80 100
Acting Type Double Acting
Single Acting_ Push Type, Single Acting_Pull Type -
Fluid Air (to be filtered by 40μm filter element)
Operating  Pressure Range Double Acting 0.15 to 1.0 MPa (1.5 to 10.0 bar) (22 to 145 psi)
Single Acting 0.2 to 1.0 MPa (2.0 to 10.0 bar) (28 to 145 psi)
Proof Pressure 1.5 MPa (15 bar) (215 psi)
Temprature (℃) -20 to +70
Speed Range (mm/s) Double Acting: 30 to 500, Single Acting: 50 to 500
Cushion Type Bumper
Port Size M5 x 0.8 1/8'' 1/4'' 3/8''


Stroke of SDA Series Pneumatic Cylinder:

Airtac-Art Anschlag des Vertrags-Luft-Zylinder-SDA16X25 16mm der Bohrungs-25mm 0

Symbol of SDA Series Pneumatic Cylinder:
Airtac-Art Anschlag des Vertrags-Luft-Zylinder-SDA16X25 16mm der Bohrungs-25mm 1


Ordering Code of SDA Series Pneumatic Cylinder:
Airtac-Art Anschlag des Vertrags-Luft-Zylinder-SDA16X25 16mm der Bohrungs-25mm 2


Criteria for selection: Cylinder thrust:

Airtac-Art Anschlag des Vertrags-Luft-Zylinder-SDA16X25 16mm der Bohrungs-25mm 3



Installation & Usage:

1. When load changes in the wonk, the cylinder wih abundant output capacity shall be ed.



2. Relative cylinder wth high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.



3. Necessasy protection measure shall be taken in the evironment with higher humidity. much dust or water drops, oil dust and welding dregs.



4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.



5. The medium used by cyinder shall be fitered to 40μm or below.



6. As both of the front cover and piston of the cylinder are short. typically too large stroke can not be ed.



7. Anti-freezing measure shall be adopted under low temperature environment prevent moisture freezing.



8. The cylinder shall avoid the inluence of side load in operation to maintain the normal work of cylinder and extend the service life.



9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports. The front and back cover can not be dismantled, which shall be especially noticed.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing



Welcome to your any question and inquiry!
