G353A041 G353A041GD rechtwinkliges 3/4" Zoll-Fernpilot Valve

Produktdetails:

Herkunftsort:	CHINA
Markenname:	Brando
Zertifizierung:	CE
Modellnummer:	G353A041

Zahlung und Versand AGB:

Min Bestellmenge:	1 PC
Verpackung Informationen:	innere Kästen, Kartone, Paletten
Lieferzeit:	7 Werktage
Zahlungsbedingungen:	L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit:	100000 PC pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Art:	Rechtwinklige Art Membranventil	Energie:	pneumatisch
Medien:	Luft	Hafen-Größe:	3/4" Zoll
Struktur:	Membran	Körper-Material:	Aluminiumlegierung
Membranmaterial:	NBR (Common), FKM (verfügbar)	Zahl der Membran:	1
Druck:	0,1 zu 0.8MPa	Temperatur:	-25 zu +80℃
Markieren:	G353A041Remote Pilot Valve , G353A041GD Remote Pilot Valve , G353A041 Diaphragm Valve

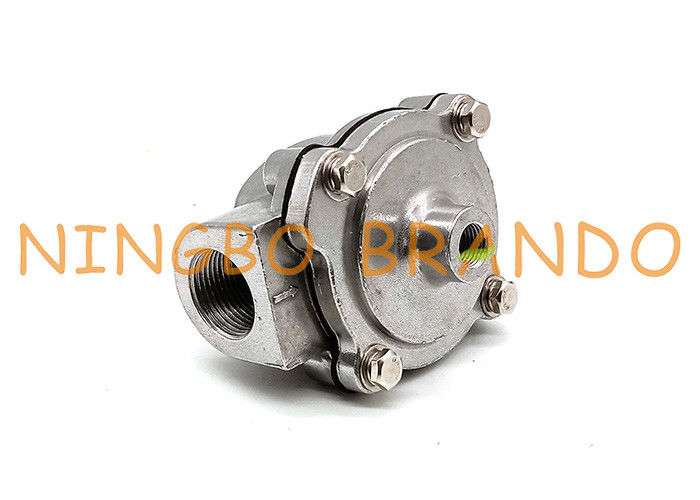

G353A041 Right Angle 3/4'' Inch Remote Pulse Jet Diaphragm Valve

This is G353A041 ASCO Type Pulse Jet Valve, 3/4'' inlet and outlet threaded port size, Remote Pilot, NBR or TPE diaphragm for you to choose, 24V DC, 110V AC, 220V AC voltages for you to choose, other voltages can be customized.

353 Series Pulse Jet Valve:
1. Threaded Pulse Jet Valve: SCG353A043, SCG353A044, SCG353A047, SCG353A050, SCG353A051
2. Remote Pilot Pulse Jet Valve: G353A041, G353A042, G353A045
3. Immersion Pulse Jet Valve: SCXE353.060

Technical Data of ASCO Pulse Jet Valve:

Port Size	Remote Pilot Connection	Office Size	Operating Pressure Differential (Bar)		Model Number	Diaphragm Material
G	φB	(mm)	Min.	Max.	Aluminium	NBR/Viton
G	φB	(mm)	Min.	Max.	Aluminium
3/4''	1/8''	24	0.35	8.5	G353A041
1''	1/8''	27	0.35	8.5	G353A042
1 1/2''	1/8''	52	0.35	8.5	G353A045

Main Dimension:

G353A041 G353A041GD rechtwinkliges 3/4" Zoll-Fernpilot Valve 0

353 Series Pulse Jet Valve For Dust Collector System:

Right Angle Valve	3/4''	1''	1 1/2''	2''	2 1/2''
	SCG353A043	SCG353A044	SCG353A047	SCG353A050	SCG353A051
Submerged Valve	3''
	SCEX353.060
Remote Pilot Valve	3/4''		1''	1 1/2''
	G353A041		G353A042	G353A045

FEATURES
• The diaphragm pulse valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
• The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust tcollector service applications
• Integral compression fittings for fast, easy, secure installation
• Valves can be supplied according to ATEX Directive 2014/34/EU for non-electrical equipment
• The valves satisfy all relevant EC directives
