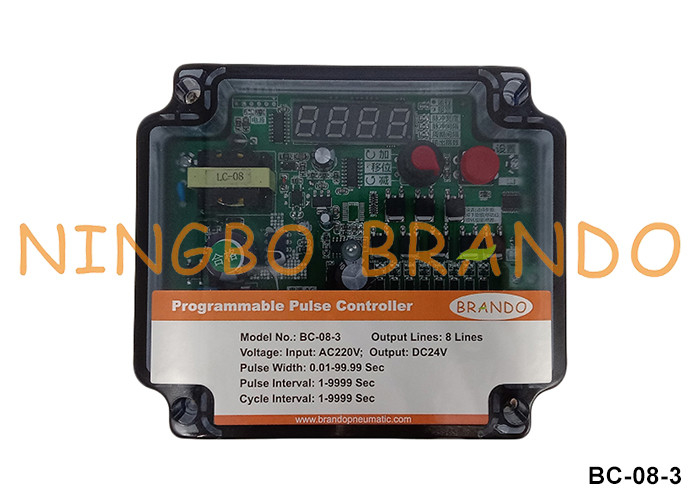

Dust Collector Pulse Valve Controller 8 Channels 220VAC Input 24VDC Output

Dust Collector Pulse Valve Controller 8 Channels 220VAC Input 24VDC Output

  • Dust Collector Pulse Valve Controller 8 Channels 220VAC Input 24VDC Output
Dust Collector Pulse Valve Controller 8 Channels 220VAC Input 24VDC Output
Produktdetails:
Herkunftsort: Ningbo, China
Markenname: BRANDO
Zertifizierung: CE, ISO
Modellnummer: BC-08-3
Zahlung und Versand AGB:
Min Bestellmenge: 1pc
Preis: Verhandlungsfähig
Verpackung Informationen: Schachtel, Karton, Palette
Lieferzeit: 4 bis 7 Arbeitstage
Zahlungsbedingungen: T/T, PayPal, Western Union
Versorgungsmaterial-Fähigkeit: 5000 Stück pro Monat
Kontakt
Ausführliche Produkt-Beschreibung
Produktbezeichnung: Pulskontroller Kanalnummer: 8
Eingangsspannung: 220Vac Ausgangsspannung: 24VDC
Breite des Pulsens: 00,01 bis 99,99 Sekunden Pulsintervall: 1 bis 9999
Zyklusintervall: 1 bis 9999 Anwendung: Staubkollektor
Hervorheben:

8 Channels Pulse Controller

,

Pulse Jet Valve Controller

,

Dust Collector Pulse Valve Controller

Dust Collector Pulse Valve Controller 8 Channels 220VAC Input 24VDC Output



Pulse Controller is a pulse jet bag filter control device in cleaning system, its output signal to control Pulse Jet Valve, blow compressed air bag sequential cleaning, so dust remains in the design within a predetermined range, in order to protect the processing power and dust collecting effect.

1. Channel Number: the number of pulse valves in the equipment (off-line mode is the number of pulse valves in a single chamber);
2. Pulse Width: the working time of the pulse valve (blowing time);
3. Pulse Interval: the interval between 2 pulse valves;
4. Cycle Interval: the interval between the end of one cycle and the start of the next cycle;
Dust Collector Pulse Valve Controller 8 Channels 220VAC Input 24VDC Output 0



Technical Data:

Model No BC-08 BC-10 BC-12 BC-16 BC-20 BC-24 BC-30 BC-36 BC-52 BC-64
Channel No 8 10 12 16 20 24 30 36 52 64
Input Voltage 24VDC, 110VAC, 220VAC, other can be customized
Output Voltage 24VDC, 24VAC, 110VAC, 220VAC, other can be customized
Pulse Width 0.1 to 999.9 Seconds
Pulse Interval 1 to 9999 Seconds
Cycle Interval 1 to 9999 Seconds
Working Environment 1. -25°C to +55°C
2. The relative humidity of the air does not exceed 85%
3. No serious corrosion gas and conductive dust
4. No violent vibration or shock


Detailed Images:

detail



Controller Setting:

setting



Controller Wiring:



wiring



Our Production:

Dust Collector Pulse Valve Controller 8 Channels 220VAC Input 24VDC Output 4



Related Products:

CA45T Pulse Valve QR N282 Solenoid Coil Dust Collector Pulse Valve Controller 8 Channels 220VAC Input 24VDC Output 7 K4502 Diaphragm
Pulse Valve Solenoid Coil Solenoid Armature Diaphragm



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
