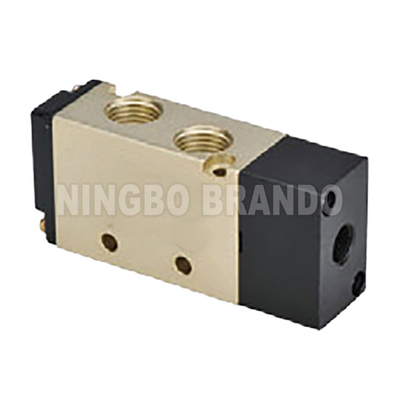

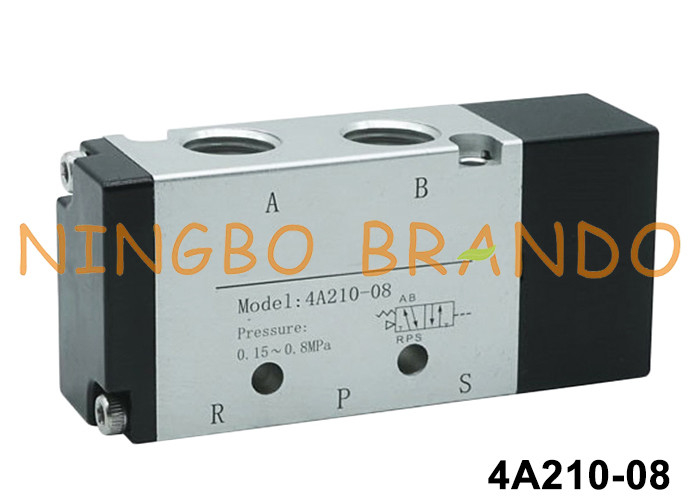

4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body

4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body

  • 4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body
  • 4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body
  • 4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body
  • 4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body
4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body
Produktdetails:
Herkunftsort: China
Markenname: Brando
Zertifizierung: CE
Modellnummer: 4A210-08
Zahlung und Versand AGB:
Min Bestellmenge: 100 Stück
Preis: Verhandlungsfähig
Verpackung Informationen: Einzelkarton, Karton, Palette
Lieferzeit: Verhandlungen
Zahlungsbedingungen: T/T, PayPal, Western Union
Versorgungsmaterial-Fähigkeit: 200000 Stück pro Monat
Kontakt
Ausführliche Produkt-Beschreibung
Ventiltyp: 5 Position der Weisen-2 Portgröße: In=Out=1/8“
Druckbereich: 0,15 zu 0.8MPa (21 zu 114PSI) Maximaler Druckwiderstand: 1.5MPa (215PSI)
Körpermaterial: Aluminiumlegierung 4A200-Serie: Die in Absatz 1 Buchstabe a genannten Elemente werden in der Tabelle 1 aufgeführt, wenn sie in der T
Max Frequency: 5 Zyklus/sek Schauspiel: Außenkontrolle
Hervorheben:

4A210-08 Pneumatic Air Pilot Valve

,

1/4'' Pneumatic Air Pilot Valve

,

AirTac Valve 4A210-08

4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body



4A air pilot solenoid valve is a compact, durable, and high-flow capacity component designed for easy integration and maintenance in pneumatic systems. It features multiple mounting options, various port sizes, and operates within a broad temperature and pressure range with low power consumption.




Data of 4A200 Series Pneumatic Control Valves:

Model
4A210-06
4A220-06
4A230C-06
4A230E-06
4A230P-06
4A210-08
4A220-08
4A230C-08
4A230E-08
4A230P-08
Fluid
Air (to be filtered by 40 μ m filter element)
Acting
Exterior Control
Port Size
In=Out=Exhaust=1/8''
In=Out=1/4'', Exhaust=1/8''
Orifice Size
25.00 mm2 (Cv=0.78)
18.00 mm2 (Cv=0.67)
30.00 mm2 (Cv=0.89)
18.00 mm2 (Cv=0.67)
Valve Type
5 way 2 position
5 way 3 position
5 way 2 position
5 way 3 position
Working Pressure
0.15~0.8MPa (21~114psi)
Max. Pressure Resistance
1.5MPa (215psi)
Temperature
5~50 ℃
Material of Body
Aluminum Alloy
Max. frequency
5 cycle/sec

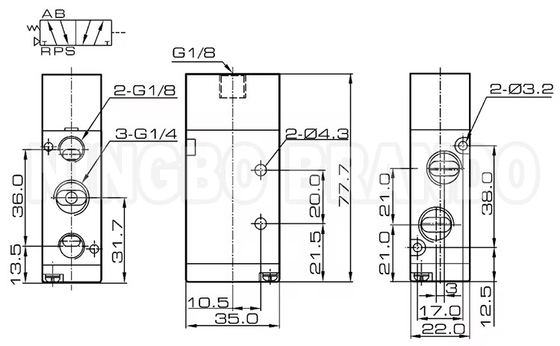

Dimension of 4A210-08 Pneumatic Air Pilot Valve:

4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body 0


Production Video of BRANDO Pneumatic Valves:



More Pneumatic Products for you to choose:

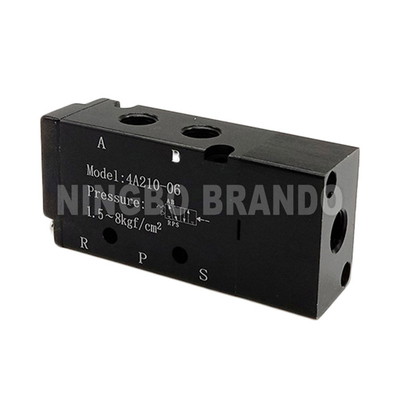

4A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body 14A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body 24A210-08 1/4'' Pneumatic Air Pilot Valve With Aluminum Alloy Body 3

Manifold                                    Silencer                        Pneumatic Hose Fittings
