Herkunftsort: | China |
Markenname: | Brando |
Zertifizierung: | CE |
Modellnummer: | 4A230C-08 |
Min Bestellmenge: | 100 Stück |
---|---|
Preis: | Verhandlungsfähig |
Verpackung Informationen: | Einzelkarton, Karton, Palette |
Lieferzeit: | Verhandlungen |
Zahlungsbedingungen: | T/T, PayPal, Western Union |
Versorgungsmaterial-Fähigkeit: | 200000 Stück pro Monat |
Ventiltyp: | 5 Weg 3 Position | Portgröße: | In=Out=1/4“, Exhaust=1/8“ |
---|---|---|---|
Druckbereich: | 0,15 bis 0,8 MPa | Maximaler Druckwiderstand: | 1.5 MPa |
Körpermaterial: | Aluminiumlegierung | Max Frequency: | 5 Zyklus/ Sekunde |
Schauspiel: | Außenkontrolle | ||
Hervorheben: | 4A230C-08 Air Pilot Valve,Airtac Type Air Pilot Valve,4A230C-08 Pneumatic Directional Valve |

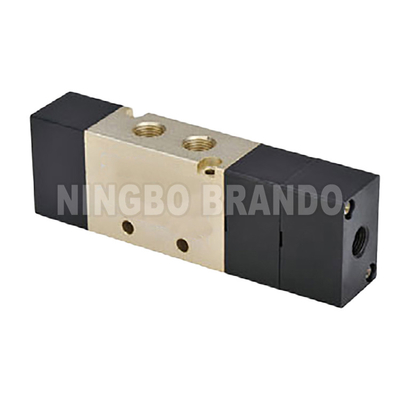

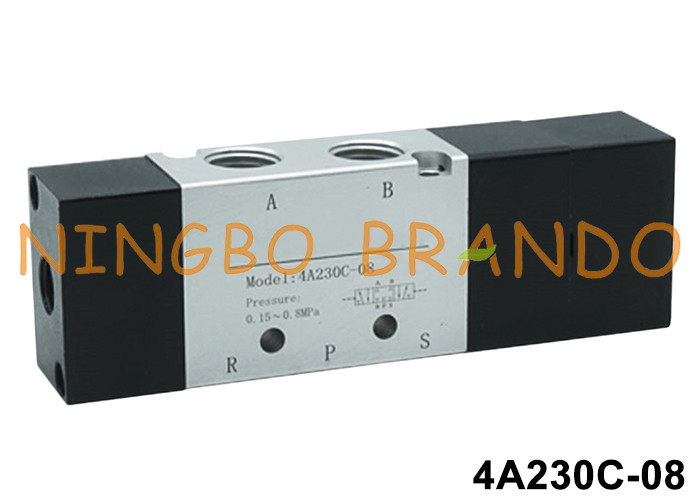

4A230C-08 Airtac Type 1/4'' Air Pilot Valve 5 Port 3 Position
Air pilot operated pneumatic valves control compressed air within pneumatic systems; they are used to signal valves, cylinders or other pneumatic devices. Pneumatic air pilot valves are either single or dual air pilot control with or without priority; the priority function ensures a default position should two pilot control signals arrive at the same time. Pilot operated pneumatic valves are available as a 3 or 5 way valve configuration with 1/8'', 1/4'', 3/8'' or 1/2'' threaded ports.
Technical Data of 4A200 Series Pneumatic Air Pilot Valve:

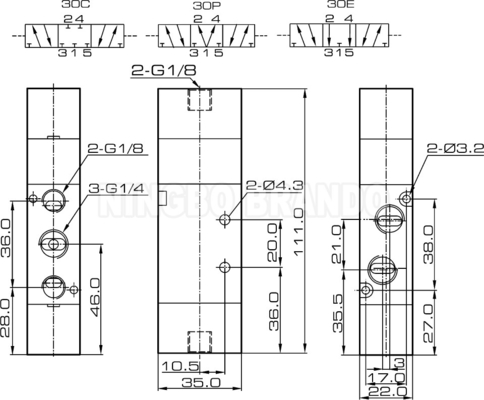

Dimension of 4A230C-08 Pneumatic Air Pilot Valve:
Production Video of BRANDO Pneumatic Valves:
More Pneumatic Products for you to choose:
2/2 Way Pneumatic Valves | 3/2 Way Pneumatic Valves | 5/2 Way Pneumatic Valves | 5/3 Way Pneumatic Valves |
![]() |
![]() |
![]() |
![]() |
Namur Solenoid Valves | Air Pilot Valves | Pneumatic Cylinders | Silencers and Fittings |
![]() |
![]() |
![]() |
![]() ![]() |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
