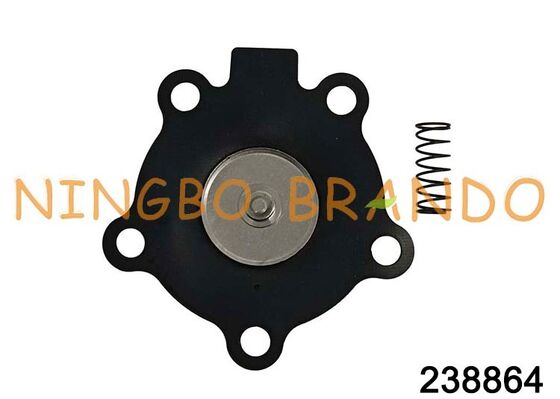

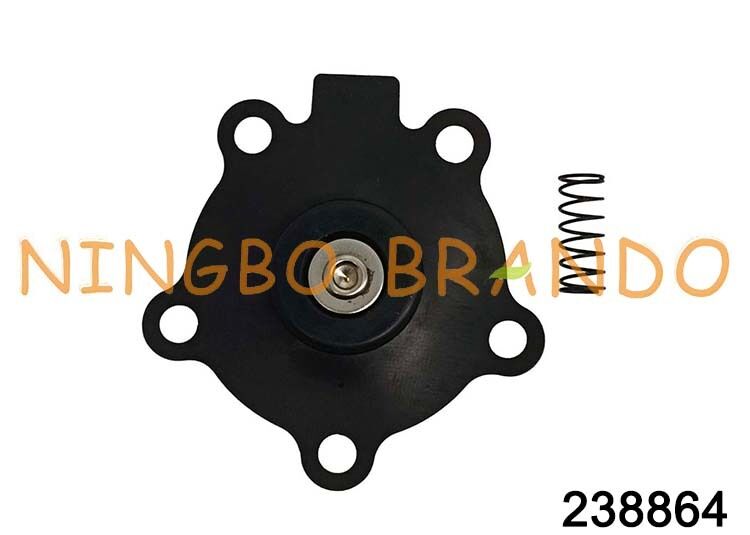

Name: Asco Type 238864 Replacement Diaphgram For Pulse Valve 8353C033 8353C030 8353C004
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 96875 (238864)
Price: 49.10 USD
Availability: InStock

Startseite Produkte Membranreparatur-set

Asco Type 238864 Replacement Diaphgram For Pulse Valve 8353C033 8353C030 8353C004

Produktdetails:

Herkunftsort:	NINGBO, CHINA
Markenname:	BRANDO
Zertifizierung:	CE, ISO
Modellnummer:	96875 (238864)

Zahlung und Versand AGB:

Min Bestellmenge:	20 Sätze
Preis:	Verhandlungsfähig
Verpackung Informationen:	Plastiktüte, Box, Karton, Palette
Lieferzeit:	4 bis 7 Arbeitstage
Zahlungsbedingungen:	T/T, Paypal, Western Union
Versorgungsmaterial-Fähigkeit:	100000 Sätze pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Pulsventilmembran	Eingesetztes Pulsventil Modell Nr.:	mit einer Breite von nicht mehr als 20 mm
Anschlussgröße des montierten Impulsventils:	3/4 ''	Zwerchfellmaterial:	NBR
1 Satz:	1pc Membran, 1pc Feder
Hervorheben:	ASCO Diaphragm 238864 , ASCO Diaphragm 96875 , ASCO Diaphragm Repair Kit

Asco Type 238864 Replacement Diaphgram For Pulse Valve 8353C033 8353C030 8353C004

The diaphragm is the most important part of the pulse valve. When the pulse valve is energised, the trapped air above pulse valve diaphragm is quickly exhausted causing fast opening of main diaphragm valve. When the pulse valve is de-energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the pulse valve.

96875 (238864) Dimension:

Asco Type 238864 Replacement Diaphgram For Pulse Valve 8353C033 8353C030 8353C004 0

Reference No:

Integral Pilot Pulse Valve Model No	Remote Pilot Pulse Valve Model No	Pulse Valve Port Size	Diaphragm Model	Diaphragm Model (10 pack)	Diaphragm Material
-	8353C033	3/4''	96875	238864	NBR diaphragm
-	8353C030	3/4''	96875	238864	NBR diaphragm
-	8353C004	3/4''	96875	238864	NBR diaphragm
-	8353C035	1''	200262	238866	HYTREL diaphragm
8353G041	-	1''	316563	238866	HYTREL diaphragm
8353G006	-	1''	300144	-	CR diaphragm, PA disc
8353G005	-	1-1/4''	300144	-	CR diaphragm, PA disc
8353G001	-	1-1/2''	300144	-	CR diaphragm, PA disc
-	8353H038	1-1/2''	276886	238870	HYTREL diaphragm
8353J039	-	1-1/2''	322108	238870	HYTREL diaphragm
8353G061	-	1-1/2''	316297	-	NBR diaphragm, PA disc
-	8353A062	1-1/2''	276884	-	NBR diaphragm, PA disc
8353G002	-	2''	300145	-	CR diaphragm, PA disc
-	8353 048	2''	256802	256797	CR diaphragm
8353G050	-	2''	316029	256797	CR diaphragm
8353G007	-	2 1/2''	176878	-	CR diaphragm, PA disc
8353G008	-	3''	176878	-	CR diaphragm, PA disc

Our Production:

Asco Type 238864 Replacement Diaphgram For Pulse Valve 8353C033 8353C030 8353C004 1
