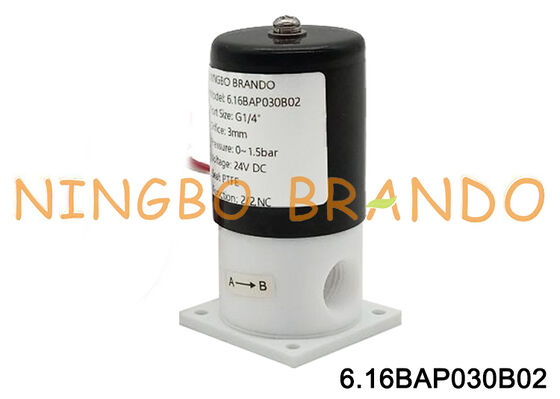

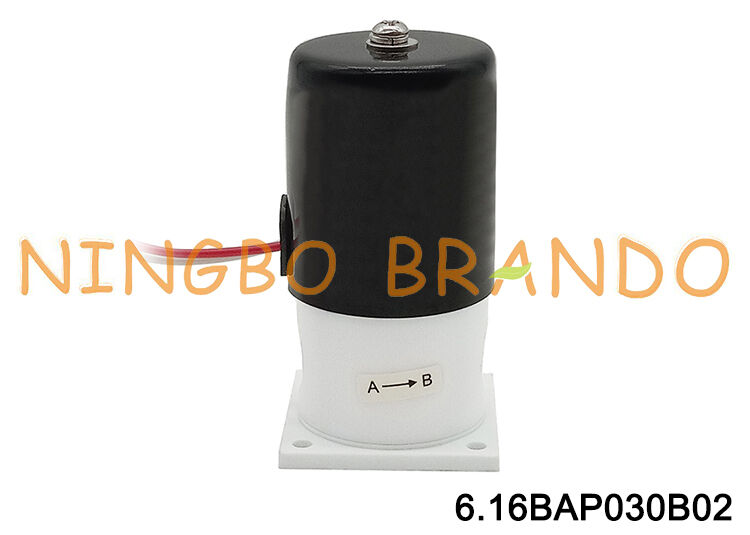

Name: 1/4'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation
Brand: Ningbo Brando Hardware Co., Ltd
SKU: 6.16BAP030B02
Price: 25.00 USD
Availability: InStock

Startseite Produkte Plastikmagnetventil

1/4'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation

Produktdetails:

Herkunftsort:	NINGBO, CHINA
Markenname:	BRANDO
Zertifizierung:	None
Modellnummer:	6.16BAP030B02

Zahlung und Versand AGB:

Min Bestellmenge:	200
Preis:	Verhandlungsfähig
Verpackung Informationen:	innere Kästen, Kartons, Paletten
Lieferzeit:	Verhandlung
Zahlungsbedingungen:	T/T, Paypal, Western Union
Versorgungsmaterial-Fähigkeit:	100000 Stück pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Funktion:	Weise 2, normalerweise geschlossen	Portgröße:	1/4''
Öffnungsgröße:	3mm	Ventilkörpermaterial:	PTFE
Dichtungsmaterial:	PTFE	Arbeitsdruckbereich:	0 bis 0,15 MPa
Spannungen:	12VDC, 24VDC, 110 VAC, 220 VAC
Hervorheben:	1/4'' Anti-corrosive PTFE Solenoid Valve , Anti-corrosion PTFE Solenoid Valve , Anti-corrosion Solenoid Valve 1/4''

1/4'' PTFE Solenoid Valve For Acid Alkali Corrosion Resistance Isolation

Product Features:

Our isolation solenoid valves offer instrument designers a completely inert, non-metallic fluid path. The valves use a flexible diaphragm to isolate the solenoid actuation mechanism from the fluid path. Isolation Valves offer low internal volumes, precise flow control and excellent ease of installation making them particularly suitable for use in highly aggressive and / or high purity fluid applications such as analytical chemistry and clinical diagnostics. The highly inert fluid path is especially useful in liquid chromatography, genomics and protein synthesis applications. The high flow factor makes these valves well suited to environmental and water analysis applications.

Technical Data of Isolation Solenoid Valve:

Model No.	Port size	Orifice (mm)	Cv	Mini Pressure	Max Pressure		Seal Material
					AC(6VA)	DC(10W)
6.16BAP030BM8	M8x1	3.0	0.1	0.0MPa	0.3MPa	0.3MPa	PTFE
6.16BAP030B01	1/8''	3.0	0.1	0.0MPa	0.3MPa	0.3MPa
6.16BAP030B02	1/4''	3.0	0.1	0.0MPa	0.15MPa	0.15MPa
					AC(24VA)	DC(13W)
6.16BAP060B02	1/4''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B03	3/8''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B04	1/2''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
6.16BAP060B06	3/4''	6.0	0.28	0.0MPa	0.15MPa	0.15MPa
