Name: CMV-14S Mueller Type Refrigeration Magnetic Check Valve 7/8'' Solder
Brand: Ningbo Brando Hardware Co., Ltd
SKU: CMV-14S
Price: 65.00 USD
Availability: InStock

Startseite Produkte Abkühlungs-Magnetventil

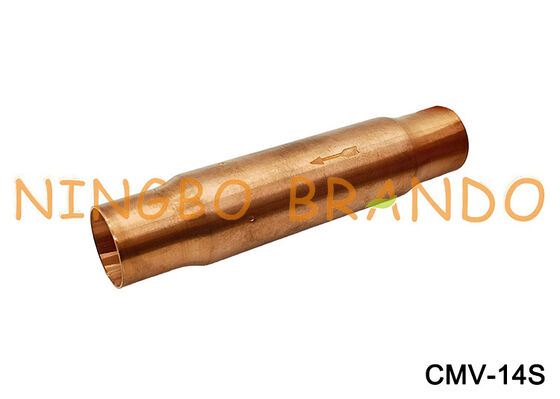

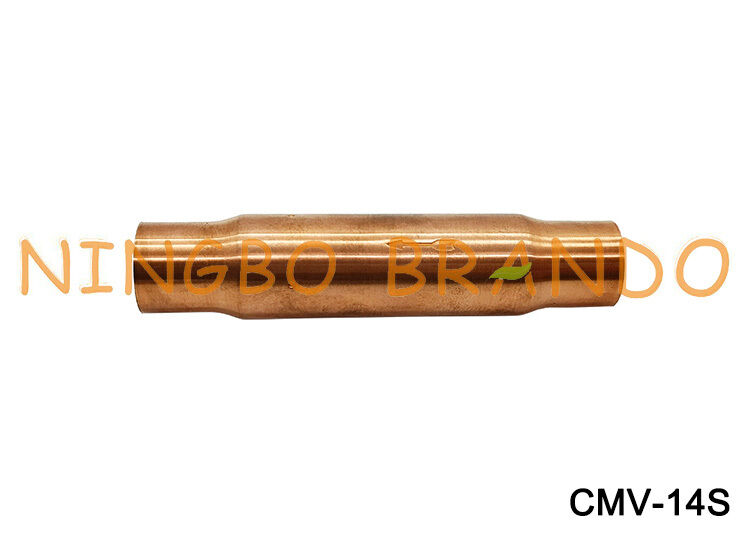

CMV-14S Mueller Type Refrigeration Magnetic Check Valve 7/8'' Solder

Produktdetails:

Herkunftsort:	China
Markenname:	BRANDO
Zertifizierung:	None
Modellnummer:	CMV-14S

Zahlung und Versand AGB:

Min Bestellmenge:	5 Stück
Preis:	Verhandlungsfähig
Verpackung Informationen:	Innenkarton, Karton, Palette
Lieferzeit:	Verhandlung
Zahlungsbedingungen:	T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	100.000 Stück pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Abkühlungs-Rückschlagventil	Portgröße:	7/8''
Verbindungstyp:	Lot	Kompatibilität:	CFC, HCFC, HFC und HFO-Kühlmittel und -öle
Maximaler Arbeitsdruck:	55 Stange bis 5/8" Größen	Arbeitstemperatur:	-40°C zu 149°C
Hervorheben:	Mueller Magnetic Check Valve cmv-14s , Refrigeration Magnetic Check Valve 7/8'' , Mueller Refrigeration Check Valve 7/8''

CMV-14S Mueller Type Refrigeration Magnetic Check Valve 7/8'' Solder

Magnetic type refrigeration check valve is designed for installation in commercial refrigerating systems and in residential or industrial air conditioning plants. They are used to control the unidirectional flow of refrigerant to prevent backflow; the magnetic actuator guarantees a high reliability standard. When you install the refrigeration check valve in the system, it will rapidly balance the high pressure and low pressure inside of the compressor when the compressor stops working, when it reaches balance, then the refrigerants won't flow until the air conditioning or the refrigeration unit restarts.

Technical Data of CMV Series Magnetic Check Valve:

Model	Connection Size (ODF)	Max Working Presure (bar)	Cv Value	Max. Internal Leak
CMV-4S	1/4''	55	0.7	<2.3 ml/min
CMV-6S	3/8''	55	1.2	<2.3 ml/min
CMV-8S	1/2''	48	2.7	<3.3 ml/min
CMV-10S	5/8''	48	3.3	<3.3 ml/min
CMV-12S	3/4''	48	7.2	<6.6 ml/min
CMV-14S	7/8''	48	8.0	<6.6 ml/min
CMV-18S	1 1/8''	48	13.2	<13.1 ml/min
CMV-22S	1 3/8''	48	18.9	<13.1 ml/min
CMV-26S	1 5/8''	48	27.8	<19.7 ml/min
CMV-34S	2 1/8''	48	49.9	<19.7 ml/min
CMV-42S	2 5/8''	48	61.9	<26.2 ml/min
CMV-50S	3 1/8''	45	64.1	<26.2 ml/min

Main Dimension of CMV Series Magnetic Check Valve:

Model	Connection Size		Dimension
	inch	mm	A		B		D
	inch	mm	inch	mm	inch	mm	inch	mm
CMV-4	1/4''	6	4.02	102	0.88	22	0.34	9
CMV-6	3/8''	10	4.02	102	0.88	22	0.34	9
CMV-8	1/2''	13	5.18	131	1.13	29	0.41	10
CMV-10	5/8''	16	5.18	131	1.13	29	0.53	13
CMV-12	3/4''	19	7.04	179	1.63	41	0.65	17
CMV-14	7/8''	22	7.04	179	1.63	41	0.78	20
CMV-18	1 1/8''	29	8.43	214	2.13	54	0.94	24
CMV-22	1 3/8''	35	9.41	239	2.63	67	1.00	25
CMV-26	1 5/8''	41	10.55	268	3.13	79	1.12	28
CMV-34	2 1/8''	54	12.06	306	3.63	92	1.37	35
CMV-42	2 5/8''	67	13.05	331	4.13	105	1.50	38
CMV-50S	3 1/8''	79	13.05	331	4.13	105	1.69	43

Cross Reference of Refrigeration Magnetic Check Valves:

MUELLER	Model No.	HENRY	SUPERIOR
CMV-4S	ACK-4	MS-4	900MA-4S
CMV-6S	ACK-6	MS-6	900MA-6S
CMV-8S	ACK-8	MS-8	900MA-8S
CMV-10S	ACK-10	MS-10	900MA-10S
CMV-12S	ACK-12	MS-12	900MA-12S
CMV-14S	ACK-14	MS-14	900MA-14S
CMV-18S	ACK-18	MS-18	900MA-11S
CMV-22S	ACK-22	MS-22	900MA-13S
CMV-26S	ACK-26	MS-26	900MA-15S
CMV-34S	ACK-34	MS-34	900MA-21S
CMV-42S	ACK-42	MS-42	900MA-25S
CMV-50S	/	/	/

More Refrigeration Products for you to choose:


Refrigeration Solenoid Valve	Reversing Valve	Expansion Valve

Hot Gas Bypass Valve	Crankcase Pressure Regulator	Ball Valve

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
