Name: AMISCO Type EVI 3P/16 Solenoid Valve Coil 230VAC 220VAC 110VAC 24VDC 12VDC 26W
Brand: Ningbo Brando Hardware Co., Ltd
SKU: BB16050020
Price: 49.10 USD
Availability: InStock

Startseite Produkte Magnetventil-Spule

AMISCO Type EVI 3P/16 Solenoid Valve Coil 230VAC 220VAC 110VAC 24VDC 12VDC 26W

Produktdetails:

Herkunftsort:	NINGBO, CHINA
Markenname:	BRANDO
Zertifizierung:	None
Modellnummer:	BB16050020

Zahlung und Versand AGB:

Min Bestellmenge:	200
Preis:	Verhandlungsfähig
Verpackung Informationen:	Innenkarton, Karton, Palette
Lieferzeit:	Verhandlung
Zahlungsbedingungen:	T/T, PayPal, Western Union
Versorgungsmaterial-Fähigkeit:	250000 Stück pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Typ:	Hydraulikmagnetventilspule	Stromspannung:	12VDC, 24VDC, 110 VAC, 220 VAC
Leistung:	26W	Stecker:	Din43650a
Bestellcode:	EVI 3P/16	Isolierklasse:	H, F
Hervorheben:	AMISCO EVI 3P/16 Solenoid Valve Coil , AMISCO Compact Solenoid Coils , AMISCO solenoid valve coil EVI 3P/16

AMISCO Type EVI 3P/16 Solenoid Valve Coil 230VAC 220VAC 110VAC 24VDC 12VDC 26W

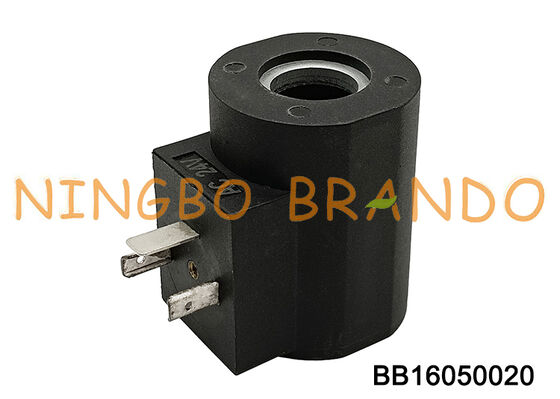

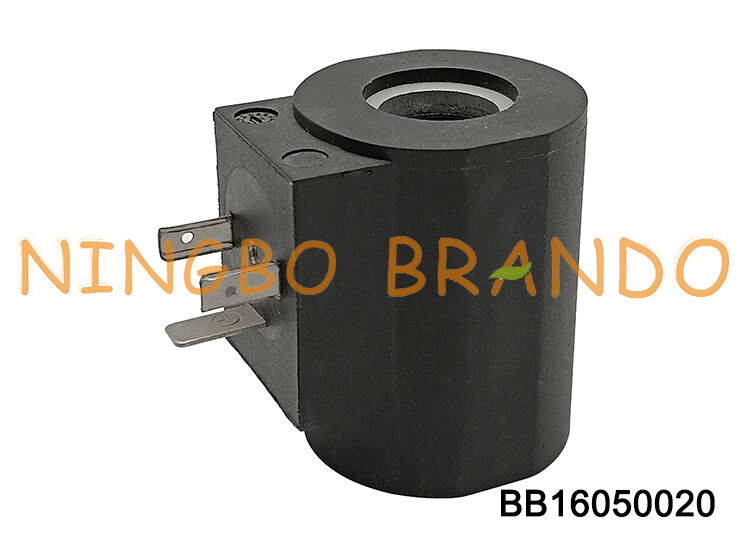

The AMISCO EVI 3P/16 is a compact, high-performance solenoid valve coil designed for hydraulic and pneumatic fluid control systems. It is widely used across industrial equipment to precisely regulate the flow of liquids or gases.

Key Specifications

Tube Diameter: Fits 16mm solenoid tubes

Power Rating: 26W (Direct Current) or 28VA (Alternating Current)

Voltage Options: Available in 12VDC, 24VDC, 110VAC, and 220V/230VAC

Connector Type: DIN 43650 Form A plug

Ingress Protection: Typically IP65 (dust-tight and protected against water jets)

Insulation Class: Class H (rated for high-temperature environments)

Common Applications

Hydraulic check valves and directional control valves

Heating, ventilation, and air conditioning (HVAC) systems

Industrial pneumatic and hydraulic machinery

Dimension of Hydraulic Solenoid Valve Coil:

EVI 3P/16 AMISCO Type Hydraulic Solenoid Coil 220VAC 110VAC 24VDC 12VDC 26W 0

BRANDO Model	BB16050020
Voltages	12VDC, 24VDC, 110VAC, 220VAC
Power	26W
Other voltage and power can be customized
Connector	DIN43650A
Insulation Class	F, H
Protection Class	IP65
