Name: Hydac Type 3000489 3000249 300315 3002594 Hydraulic Solenoid Coil 12V 24V 110V 220V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: BB18040004
Price: 49.10 USD
Availability: InStock

Startseite Produkte Magnetventil-Spule

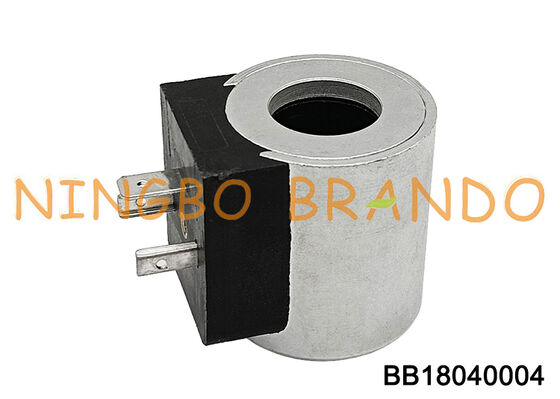

Hydac Type 3000489 3000249 300315 3002594 Hydraulic Solenoid Coil 12V 24V 110V 220V

Produktdetails:

Herkunftsort:	NINGBO, CHINA
Markenname:	BRANDO
Zertifizierung:	None
Modellnummer:	BB18040004

Zahlung und Versand AGB:

Min Bestellmenge:	200
Preis:	Verhandlungsfähig
Verpackung Informationen:	Innenkarton, Karton, Palette
Lieferzeit:	Verhandlung
Zahlungsbedingungen:	T/T, PayPal, Western Union
Versorgungsmaterial-Fähigkeit:	250000 Stück pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Produktname:	Hydraulikmagnetventilspule	Stromspannung:	Dies ist der Fall, wenn die Leistung von DC12V, DC24V (± 10%)
Leistung:	18W, 23W	Stecker:	Din43650a
Isolierklasse:	H	Anwendung:	HYDAC-Richtventile
Hervorheben:	Hydac Hydraulic Solenoid Coil , Solenoid Valve Coil 3000249 DC24V , Hydac 3000489 Solenoid Coil

Hydac Type 3000489 3000249 300315 3002594 Hydraulic Solenoid Coil 12V 24V 110V 220V

This 40-1836 / E0241.H / 3000249 / 3003138 solenoid coil is a hydraulic coil for HYDAC type WSM06020 hydraulic valves. The electromagnetic coil and the armature assembly form an electromagnet. The electromagnet is the energizing solenoid that is learned in middle school. It generates magnetism after being energized. However, it also generates heat after energization. The higher the power of the electromagnet, the greater the heat generated. The heat generated is always more than the heat emitted. It will continue to heat up. When the temperature reaches a certain height, the paint layer on the melt will melt, and then the short circuit will burn out. The electromagnet coil has a thermal effect in addition to the magnetic effect when it is energized. This is inevitable.

Dimension of Hydraulic Solenoid Valve Coil:

Hydac Type 3000489 3000249 300315 3002594 Hydraulic Solenoid Coil 12V 24V 110V 220V 0

Model number	BB18040004
Ref number	3000489 3000249 300315 3002594
Normal voltage	DC12V, DC24V, AC110V, AC220V
Normal power	18W, 23W
Material	Plastic, Brass, Iron
Wire class	H
Connection	DIN43650A
Application	HYDAC Type WSM06020 ELectro Valve
Hole size	18 mm
Height	40 mm
Width	36.5 mm
